| Model | PTC Heating Element |
| Material | Ceramic |
| Operating Temperature | -20℃ to +105℃ |
| Tolerance | ±20% |
| Type | Ceramic PTC Thermistor, PTC Heating Element, PTC Heater |
| Shape | Disc |
| Voltage | 3.7V to 265V |
| Resistance at 25C | 3.5R 15R 18R 180R 1200R |
| Size | Customized |
| Function | Self-Heating |
PTC heating elements are electric heating elements made of positive temperature coefficient (PTC) ceramic material. Their core features include automatic temperature regulation and over-temperature protection: At low temperatures, their resistance is low, allowing them to rapidly heat up upon power application. When the temperature reaches a specific critical point (the Curie temperature), their resistance increases dramatically, automatically reducing power consumption to avoid overheating. This adaptive feature ensures high safety and energy savings, enabling stable temperature control without the need for additional temperature control devices.
They are widely used in home appliances (such as air conditioning auxiliary heating and heaters), automotive electronics (seat heating and battery preheating), medical equipment, and industrial applications. Their compact design, long lifespan, and lack of open flames make them key components in modern intelligent thermal management solutions.

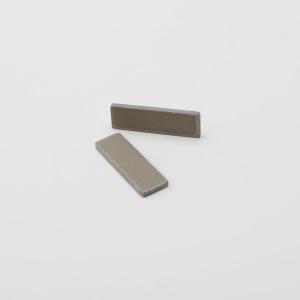

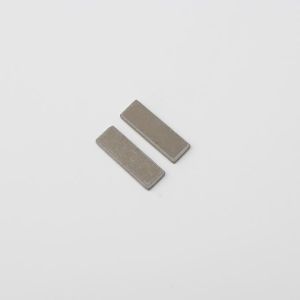

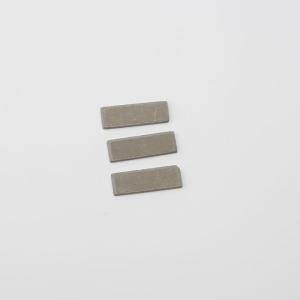

Photos of Self-Regulating Ceramic PTC Heating Element for Automotive Applications
Features
Safety Protection
PTC heating elements do not glow red or produce open flames during operation (common resistance wires glow red and produce open flames), making them non-flammable. When the ambient temperature of the PTC element exceeds the limit, its power automatically decreases to a stable value, eliminating the risk of burns.
Stable Performance
PTC heaters feature automatic constant temperature control. No temperature control system is required; simply power the PTC directly. When used to heat liquids, such as water, the PTC heater will not be damaged if the liquid boils dry. Reliable operation utilizes the PTC's internal temperature control characteristics to prevent overheating.
Wide Range of Applications
Low-voltage PTC components are suitable for various low-voltage heaters, instrument low-temperature compensation, heaters in automotive and computer peripherals, thermal beauty devices, PCB heating USB heaters, incense burners, mosquito repellents, and more. High-voltage PTC components are suitable for heating the following electrical equipment: air conditioners, fan heaters, rice cookers, hair curlers, electric mosquito repellents, humidifiers, copiers, hand warmers, shoe dryers, water pipe heaters, travel clothes dryers, automotive paint booth massagers, electric dining tables, bottle thermostats, electric kettles, electric blankets, and more.
